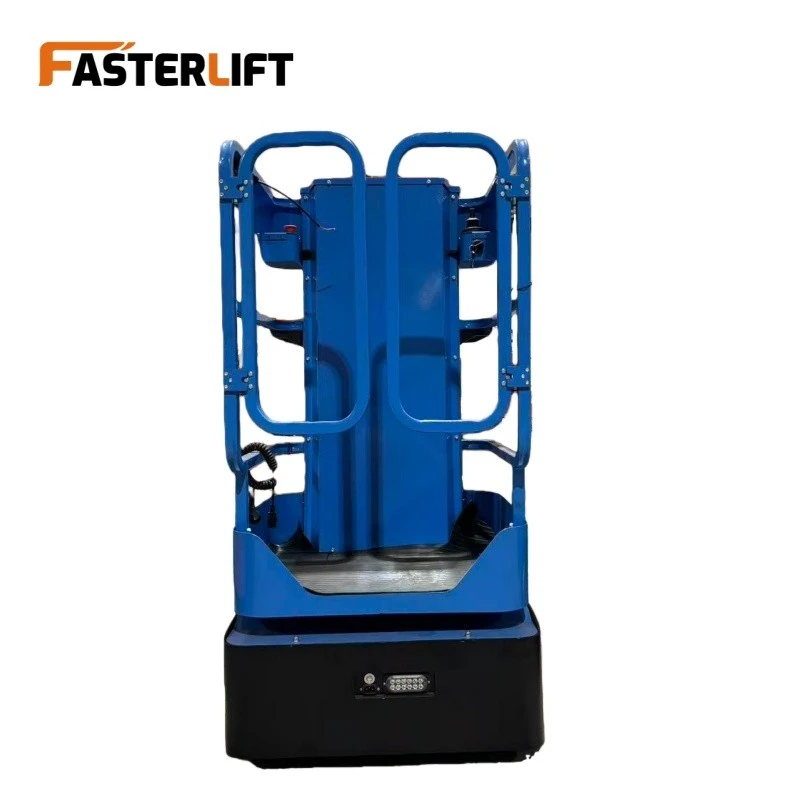

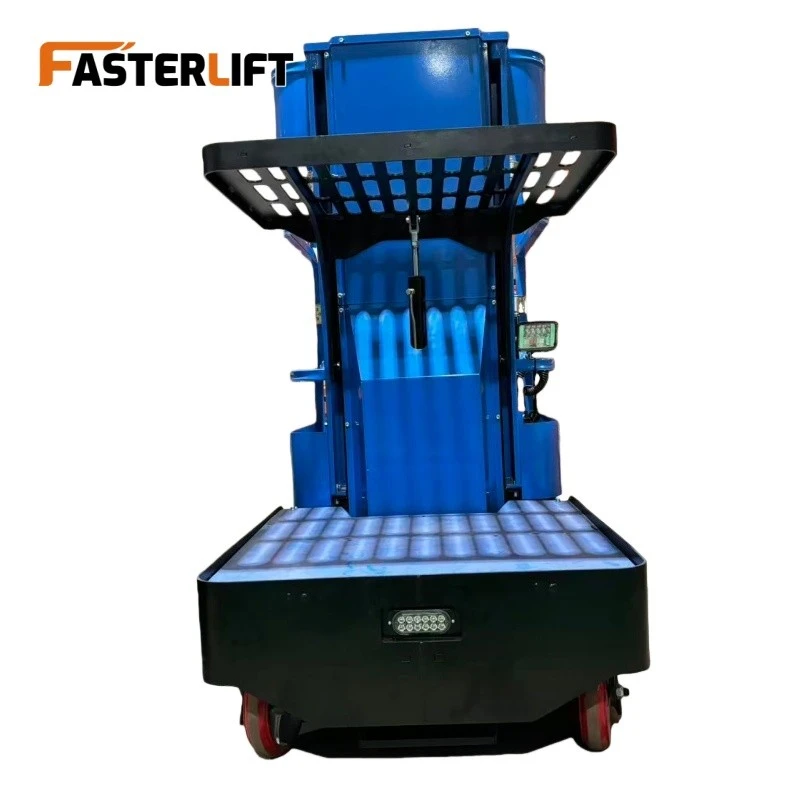

Stock Picker Lift

Shandong Faster Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of stock picker lift in China. With abundant experience, we warmly welcome you to buy premium stock picker lift for sale here from our factory. If you have any enquiry about cooperation, please feel free to email us.

Need a safer, faster way to pick items from high shelves? A stock picker​ (also known as an order picker) is designed to do exactly that. Instead of having workers stretch from ladders or reach awkwardly, the operator simply rides the platform up to the product. It turns high-level picking into a controlled, up-close task that's both efficient and safe.

Tough build, precise control

It's built on a heavy-duty, low-profile chassis​ that keeps the center of gravity low for maximum stability. A robust mast-or in some cases, a scissor lift mechanism-raises the platform smoothly and predictably.

The platform itself is a complete workspace: user-friendly controls, a load bed or cage for carrying materials, and safety gates to secure the load. Power comes from a tough industrial battery (24V or 48V), running both drive and lift functions quietly and efficiently. Many modern units feature AC drive technology​ for pinpoint control and improved energy efficiency during long warehouse shifts.

The product specifications and technical data are summarized in the following table.

1. Performance Specs: Models range in lift heights from 6 meters to over 13 meters, with standard load capacities between 200kg and 450kg. The platform capacity is separate, often around 100kg-150kg for the operator and picked goods.

2. Operator Interface: User-friendly controls include a multi-function handle for drive/lift/steer, display screens for battery and system status, and often preset height selectors for increased efficiency.

3. Safety Systems: A comprehensive suite includes emergency lowering, platform entry gates, safety harness attachment points, tilt/lean sensors, pothole protection, and redundant braking systems (electromagnetic and mechanical).

4. Advanced Options: Many units offer integration capabilities via Wi-Fi or RFID for real-time communication with Warehouse Management Systems (WMS), directing picks and updating inventory instantly. Other options include height-of-travel indicators, blue safety lights, and various fork or platform configurations.

The fundamental benefit is the dramatic increase in "pick density" and speed. By bringing the operator to the stock, it eliminates the inefficiencies of climbing ladders or using multiple machines. This ergonomic design reduces physical strain and injury risk while significantly boosting picking accuracy and overall warehouse productivity. Its narrow-aisle capability also maximizes storage space utilization.

USA CURTIS CONTROL SYSTEM	CONTROL PANELS ON PLATFORM	SAFETY CHAINS
SAFETY GUARDRAILS	HIGH QUALITY HYDRAULICCYLINDERS	TRACELESS HYDRAULIC DRIVING WHEEL
AUTOMATIC BRAKE SYSTEM	CARGO PLATFORM	EMERGENCY STOPBUTTON

The stock picker lift features a robust chassis, powerful AC drive, and a precise lifting system for heights up to 13m. Key characteristics include an ergonomic operator platform with intuitive controls, a large order cage, and comprehensive safety systems (emergency brakes, tilt sensors). It offers energy-efficient operation, excellent maneuverability for narrow aisles, and options for seamless WMS integration.

The stock picker lift offers key advantages: it dramatically increases picking speed and productivity by bringing the operator directly to the inventory. This ergonomic design significantly reduces operator fatigue and injury risk. It enables high-density storage in narrow aisles, maximizes vertical space, and improves order accuracy through systematic, platform-based work.

Quality Assurance for stock picker lifts involves a stringent, end-to-end process. It starts with inbound inspection of raw materials and purchased components. Each assembly stage undergoes verification. Completed units are subjected to exhaustive performance, stability, and safety tests-including full-load lift cycles, brake performance, and functional checks of all controls and safety devices-ensuring compliance with international standards before delivery..

Stock picker lifts are primarily applied for manual order picking and replenishment tasks in multi-level storage racking. They are essential in e-commerce fulfillment centers, retail distribution warehouses, third-party logistics (3PL) facilities, and manufacturing parts storerooms, enabling efficient, ergonomic, and accurate retrieval of cases or individual items from elevated storage locations..

The working principle centers on a battery-powered system. The operator uses the control handle to drive the unit and activate the hydraulic or electric lift mechanism. This elevates the operator platform vertically along the mast to the required picking height. Integrated sensors and controllers ensure stable, controlled movement and precise positioning, allowing safe, manual item retrieval directly from storage racks.

We have an inventory of original parts for all mechanical models. Customers can contact us online and we offer fast delivery as well as comprehensive technical support for part installation.
